Measure your new filter

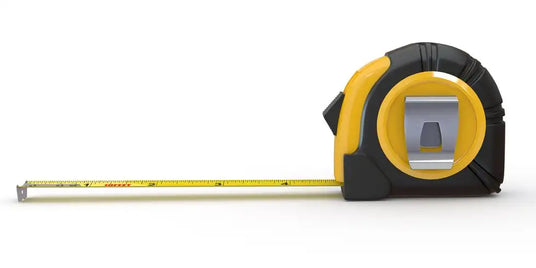

Yellow and black tape measure with a metallic silver hook.

How to measure up for a New AirClean™ Filter

Getting the right filter to fit your home is super important. The right filter will allow maximum filtration of the air in your home.

A snug fitting filter will help your family breath easy. In order to select the perfect filter to fit your air conditioning system, there are some key points to check.

This is easy and only takes a minute with a tape measure. You only need to do this once........... the right filter size will be forever yours!

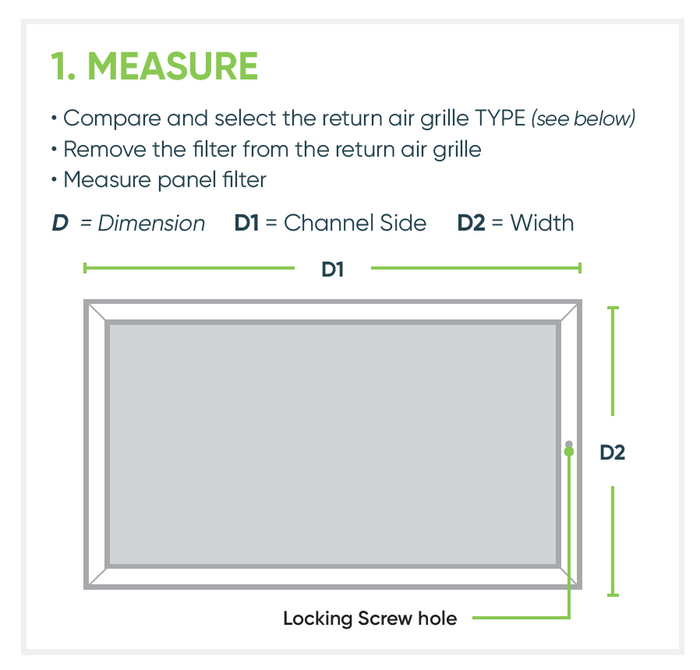

STEP 1 - Measure:

Firstly, you'll need to work out the type of grille you have. There are 5 common grilles types shown below. Match your setup to one of the pictures. Measuring your filter is easy once you have worked out the type of return air grille you have.

Simply work out what side is D1 and what side is D2 and you can match your measurements to the large range of AirClean filters™ in the next step.

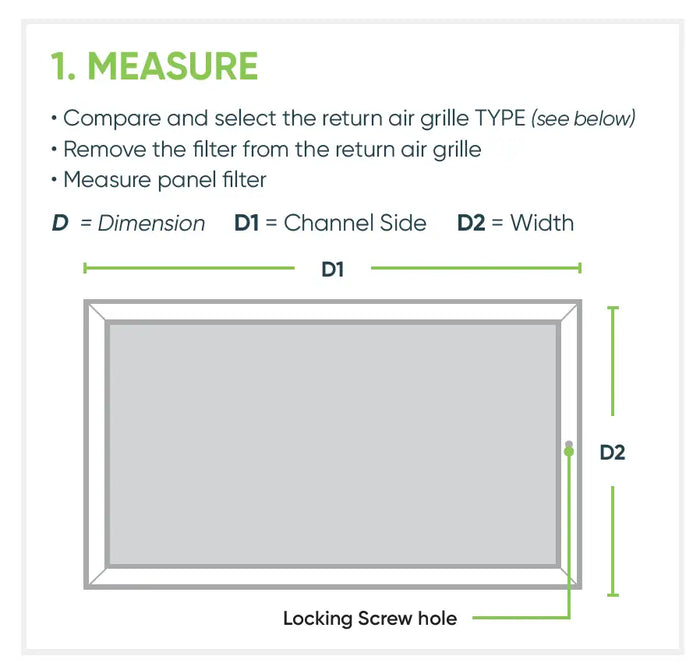

  • Gray rectangular return air grille with labeled dimensions d1 and d2, featuring a locking screw hole at the bottom right corner.

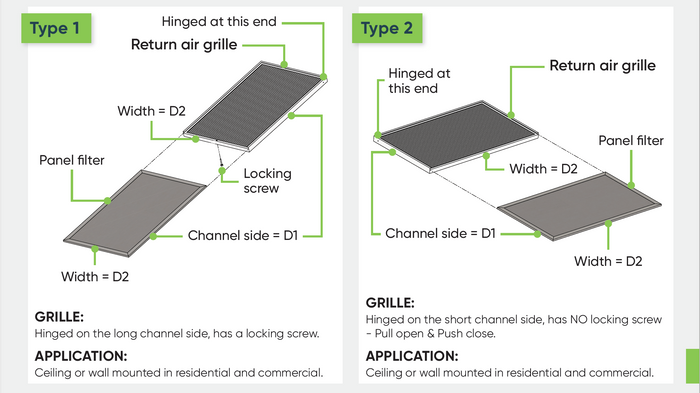

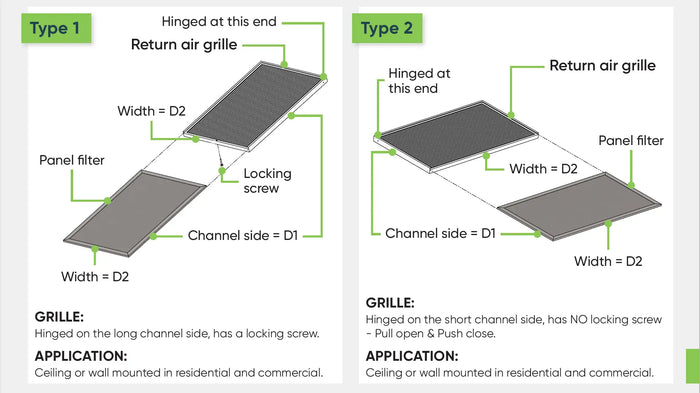

  • Type 1 return air grille with hinged long channel side and locking screw, featuring a panel filter design for ceiling or wall mounting in residential and commercial settings.

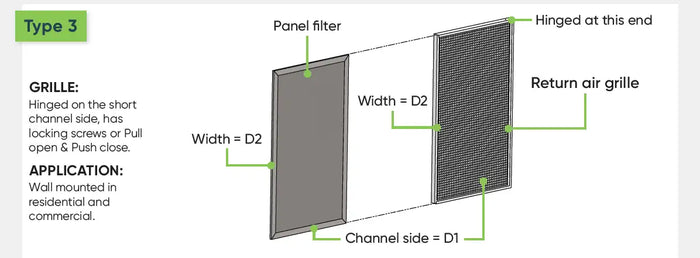

  • Gray panel filter with mesh grille, hinged at one end and designed for wall mounting in residential or commercial settings.

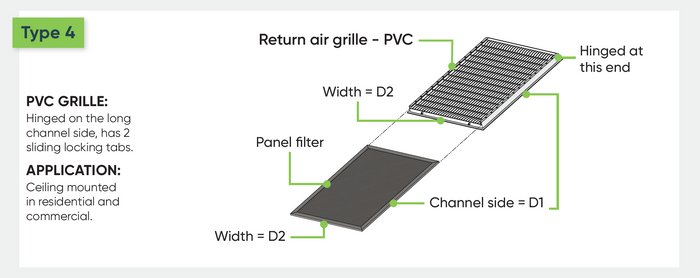

  • Pvc grille with a hinged design, featuring a return air grille and panel filter for ceiling mounting in residential or commercial settings.

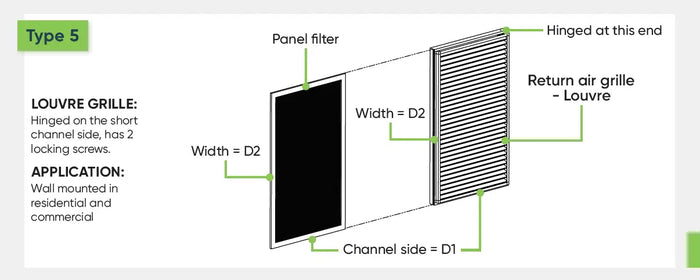

  • Type 5 louvre grille, featuring a hinged panel filter and return air grille design with slatted ventilation for wall mounting in residential or commercial settings.

STEP 2 - Match

Once the filter has been measured, you can match it to the correct size filter below. Use the column 1 and 2 to find the closest match. This can be 1-2mm different to your measurements without affecting the filter fitment.

If you find none that match, your still covered....we can custom order any size filter you require!

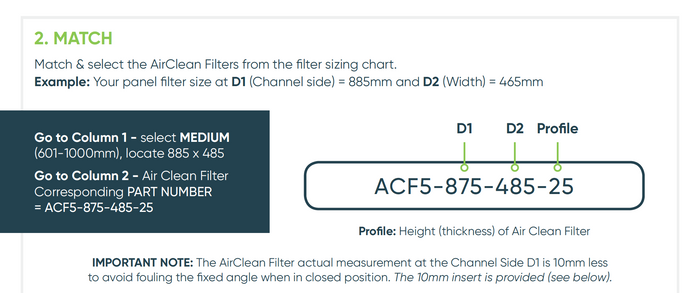

  • The airclean filter model acf5-875-485-25 is a rectangular, white plastic filter with precise dimensional markings for channel and width measurements.

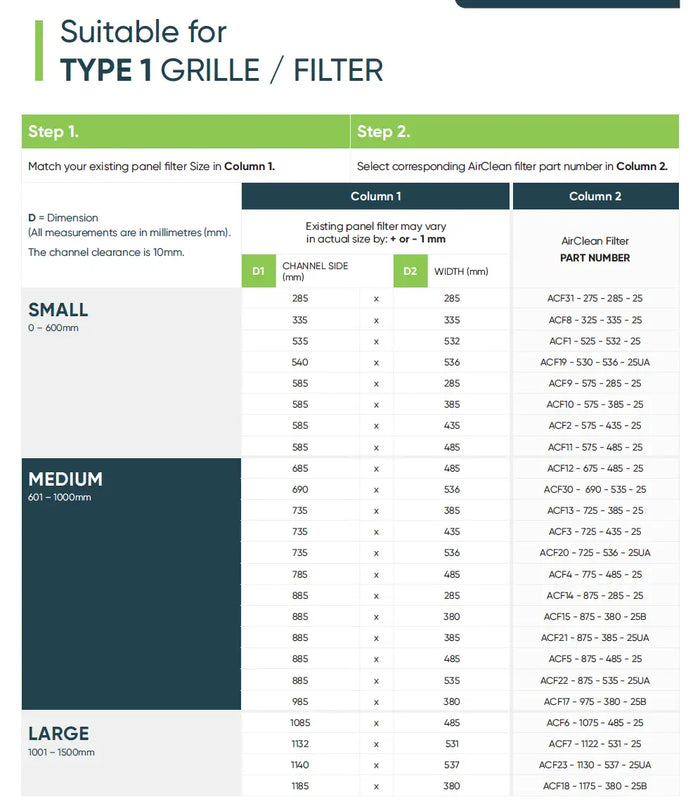

  • This is a technical specification chart for airclean panel filters, detailing compatible dimensions and part numbers across small, medium, and large sizes.

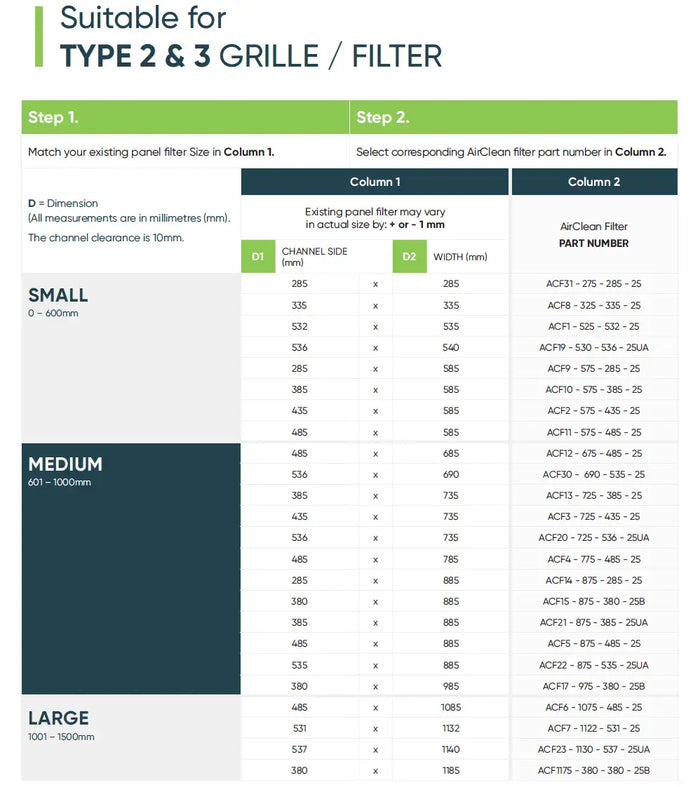

  • Airclean filter size chart for type 2 & 3 grille/filter systems.

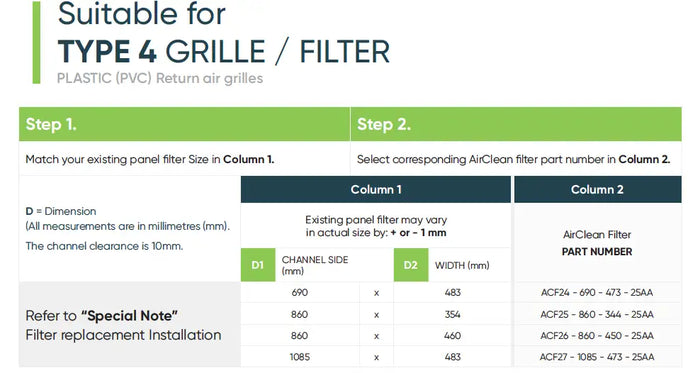

  • This is a chart for selecting airclean filter part numbers compatible with type 4 plastic (pvc) return air grilles, featuring columns that match existing panel filter dimensions to corresponding part numbers.

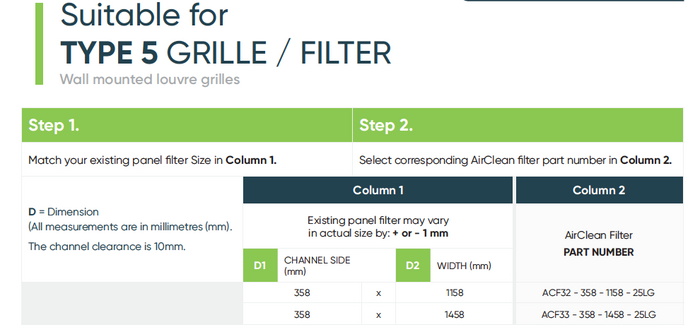

  • Airclean type 5 grille/filter installation guide with a green header and white background, displaying tables for matching existing panel filter sizes to corresponding airclean part numbers.

STEP 3 - CALCULATOR:

If your unsure which filter is the closest match? Use our online filter calculator to work out the closest matching filter. Find the ACF Filter calculator here.

STEP 4 - ORDER:

Once you have the right filter picked, head over to the order page, linked below, and select your filter from the drop down list.

Shipping is always FREE when you order from Clean Air Living, so you can breathe easy!

Better for your health, Better for your System
